Fuji Leak Noise Correlator: LC 5000

Fuji Leak Noise Correlator: LC 5000

The Fuji LC-5000 Digital Quatro Correlator is an advanced leak detection system engineered for high accuracy and efficiency. Featuring four sensors and 6 way simultaneous correlation, it delivers precise leak pinpointing even across long distances. With extended wireless range, logger mode for data analysis, and support for large diameter pipes up to 3000 mm, the LC-5000 offers reliable, real time performance for utilities and contractors alike.

Description

The Fuji LC-5000 Digital Quatro Correlator is a next-generation leak detection system designed for precise, efficient, and reliable water leak pinpointing. Equipped with four integrated sensors, it enables operators to run up to six simultaneous correlations, displaying results clearly on a single screen.

Its relay communication mode extends wireless range and avoids signal loss from obstacles, while logger mode stores and correlates leakage data for later analysis. Ideal for both short and long-distance surveys, the LC-5000 delivers high accuracy with support for large diameter pipes (up to 3000 mm). Compact, durable, and easy to operate, it’s a powerful tool for water utilities and contractors seeking fast and dependable leakage detection.

6-way simultaneous correlation on one screen.
4-sensor correlation improves accuracy and stability.
Sensors as relays extend wireless range and prevent poor connections.
Supports long-distance surveys via radio relay.

Logger mode enables leakage data to be correlated later.
Large-diameter pipe filter supported (up to φ3000mm).
Leakage data can be recalculated after pipe info reset.

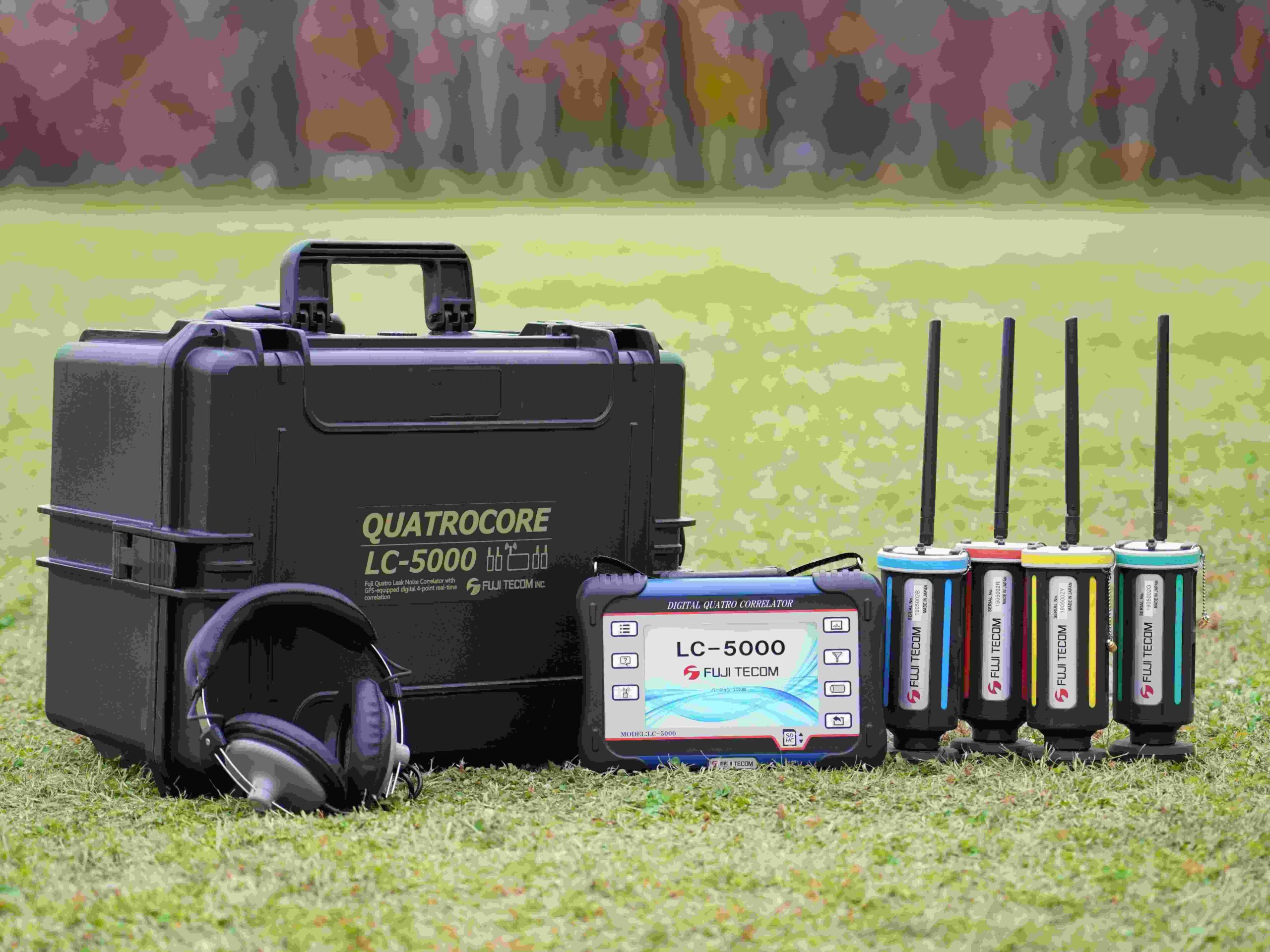

Main unit (with rechargeable battery) and antenna × 1
Pre-amplifier antenna and 2 m extension cable × 4
Hand strap × 1
Preamplifier-integrated sensor × 4
Pedestal for pre-amplifier × 4
Headphones × 1

Charger for rechargeable battery in main unit × 1
Storage case × 1
AC adapter for preamplifier-integrated sensor × 4
SDHC card (class 10) × 1
Instruction manual (CD) × 1
Post process software × 1

Data SHeet instruction manual
